Brand Name : Yuntong
Model Number : YT-B-1711
Certification : CE , SGS
Place of Origin : Hebei, China
MOQ : 10 square meters
Payment Terms : T/T, Western Union,PayPal, L/C
Supply Ability : 300Sqm/Week
Delivery Time : about 5-8 Work Days
Packaging Details : Package film inside,carton box outside
Material : High Grade AISI316
Rope Mesh Constructions : 7 x 7 , 7 x 19, 1x7
Finished : Polished
Wire Rope : 1.5 mm , 1.6mm is popular
Mesh Orientation : Horizontal , Vertical
Product Name : X-Tend Cable Wire Mesh Net
Mesh Type : Ferruled wire rope mesh

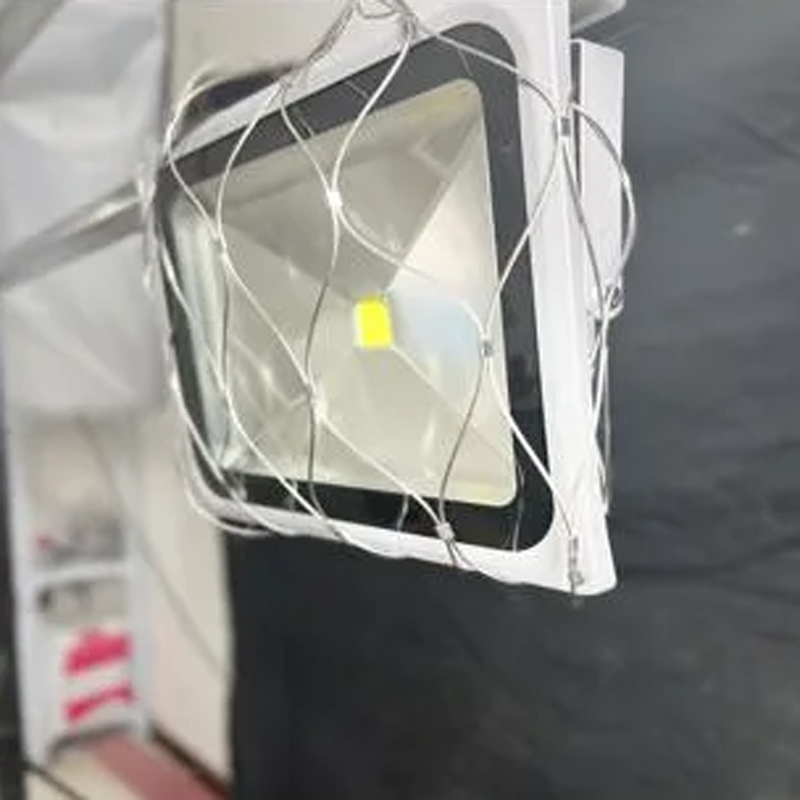

2.0mm Stainless Steel Wire Rope Cable Preventing Safety Net for Floodlight

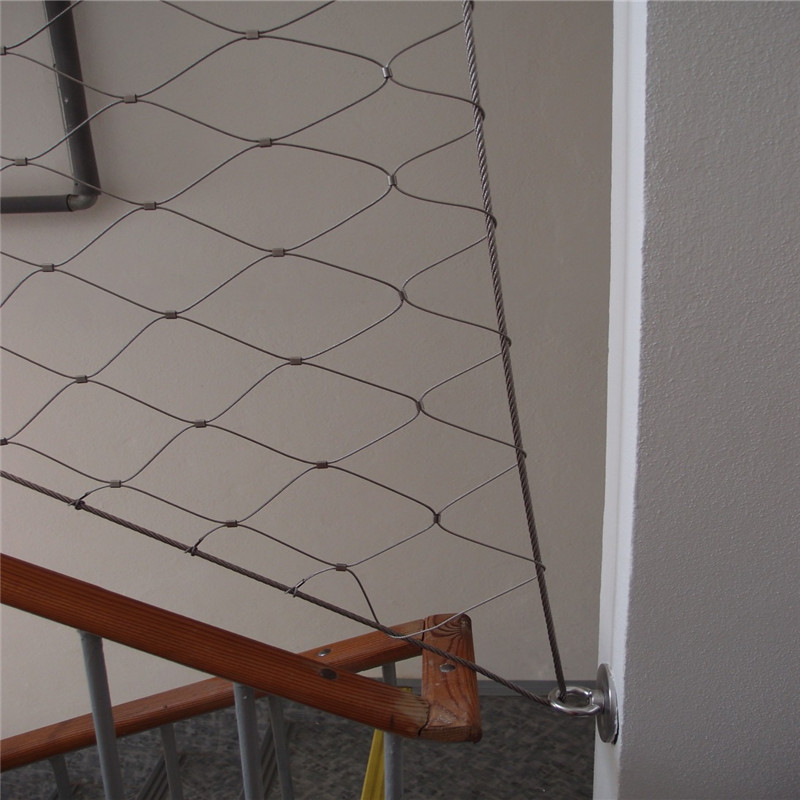

The stainless steel cable mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.
Wire Rope Mesh Specifications :
Hole Size (Opening) | 1.2MM(3/64) (7 x 7 ) | 1.6MM(1/16) (7 x 7 ) | 2.0MM(5/64) (7 x 7 ) | 2.4MM(3/32) (7 x 7 ) | 3.2MM(1/8) (7 x 19 ) |
20 x 35mm | YT-1235 | ||||
25 x 42mm | YT-1225 | YT-1625 | |||
30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
