Flexible Inox stainless steel wire rope mesh web with ferrules 2.0 mm wire 50*50 mm hole
1. Specification:
Stainless steel flexible wire rope mesh adopt ferrule type which is sturdy and unlimited in wide and long ;
This stainless steel wire rope mesh aperture shape in rhombus or diamond with 60 degree mesh angle ;

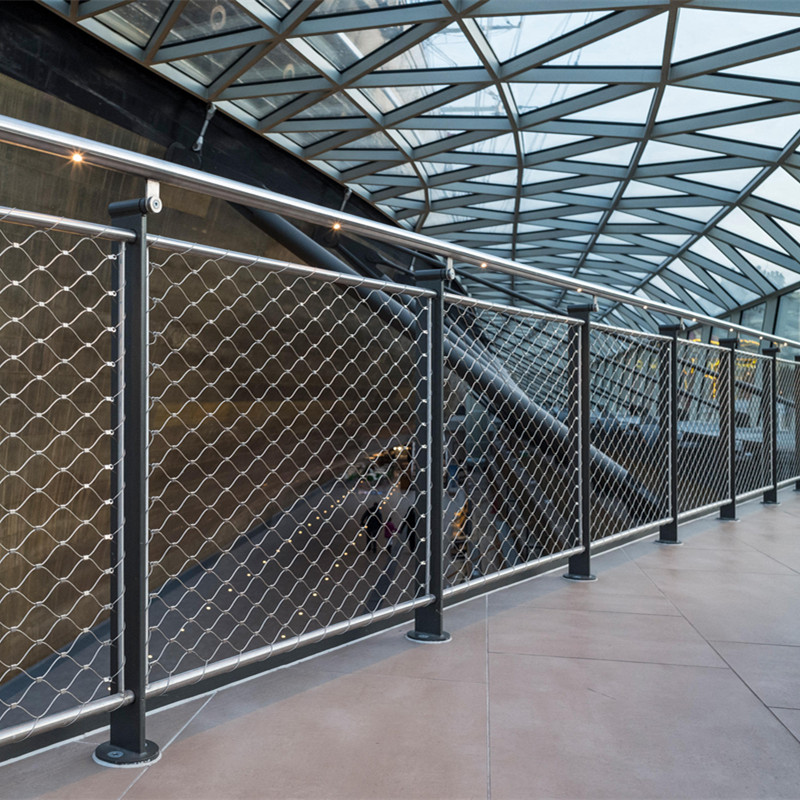

Usually the mesh eye size for the balustrade wire rope mesh is mesh wide 25 mm by mesh high 150 mm with wire rope diameter 1.5 mm 1.6 mm 2.0 mm 2.5 mm 3.0 mm 4.0 mm 6.0 mm;

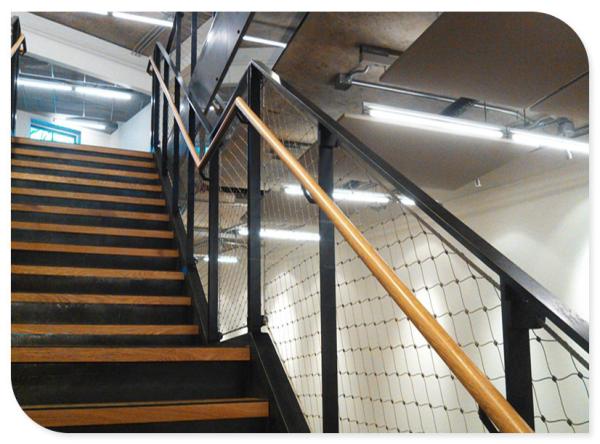

Stainless steel wire rope mesh is custom manufactured to in width and length to suit your balustrades and staircases ;
| Flexible Stainless Steel Cable Mesh(Ferrule Type) |
| Item No.s | Cable Diameter | Mesh Opening Size
(W×H) | Normal Break |
| | inch | mm | inch | mm | ibs. |
| YT-3212F | 1/8 | 3.2 | 4.75×8.23 | 120×207.8 | 1,600 |
| YT-3210F | 1/8 | 3.2 | 4×6.9 | 102×176.7 | 1,600 |
| YT-3211F | 1/8 | 3.2 | 3.5×6.15 | 90×156 | 1,600 |
| YT-3212F | 1/8 | 3.2 | 3×5.2 | 76×131.6 | 1,600 |
| YT-3213F | 1/8 | 3.2 | 2×3.46 | 51×88.3 | 1,600 |
| YT-3214F | 3/32 | 2.4 | 4×6.9 | 102×176.7 | 920 |
| YT-3215F | 3/32 | 2.4 | 3.55×6.15 | 90×156 | 920 |
| YT-3216F | 3/32 | 2.4 | 3×5.2 | 76×131.6 | 920 |
| YT-3217F | 3/32 | 2.4 | 2.4×4.16 | 60×104 | 920 |
| YT-3218F | 3/32 | 2.4 | 2×3.46 | 51×88.3 | 920 |
| YT-3219F | 5/64 | 2.0 | 3×5.2 | 76×131.6 | 676 |
| YT-3220F | 5/64 | 2.0 | 2.4×4.16 | 60×104 | 676 |
| YT-3221F | 5/64 | 2.0 | 2×3.46 | 51×88.3 | 676 |
| YT-3222F | 5/64 | 2.0 | 1-1/2×2.6 | 38×65.8 | 676 |
| YT-3223F | 1/16 | 1.6 | 1.2×2.08 | 76×131.6 | 480 |
| YT-3224F | 1/16 | 1.6 | 2×3.46 | 51×88.3 | 480 |
| YT-3225F | 1/16 | 1.6 | 1-1/2×2.6 | 38×65.8 | 480 |
| YT-3226F | 1/16 | 1.6 | 1.2×2.08 | 30×52 | 480 |
| YT-3227F | 1/16 | 1.6 | 1×1.73 | 25.4×44 | 480 |
| YT-3228F | 3/64 | 1.2 | 1-1/2×2.6 | 38×65.8 | 270 |
| YT-3229F | 3/64 | 1.2 | 1.2×2.08 | 30×52 | 270 |
| YT-3230F | 3/64 | 1.2 | 1×1.73 | 25.4×44 | 270 |
| YT-3231F | 3/64 | 1.2 | 4/5×1.39 | 20×34.6 | 270 |
2. Structure and Types:
3. introduction:
The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizes to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
4. Advantage:
1.The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested – especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and
installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.
5.Application: It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
6. Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
