| Cable Diameters | 1.2 mm to 3.2 mm |
| Mesh Hole Size | 25 x 43mm to 50 x 86 mm or bigger |
| Cable Structures | 7 x 7 , 7 x 19 |

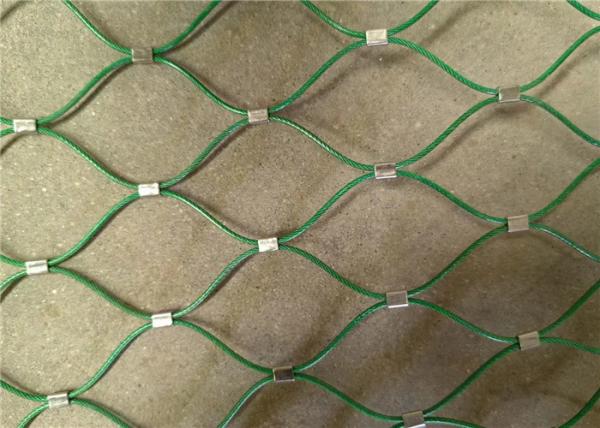

Wire rope aviary mesh netting is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ;
Aviary Zoo Mesh is made up of 304, 304L, 316, 316L process is divided into manual weaving, closed mouth type, open buckle type, stainless steel rope net is suitable for bridge fence, zoo, ocean Park, sports, acrobatics, home decoration and other fields.
Recommended Stainless Steel Cable Mesh Specification for Aviaries :
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 3/64" (1.2MM) | 1" x 1" | 270 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 1" x 1" | 480 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 1.2" x 1.2" | 480 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 1.2" x 1.2" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 1.5" x 1.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.0" x 2.0" | 676 LBS |
Aviary Wire Netting by Yuntong made from stainless steel wires, and has skin-like characteristics. It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical.

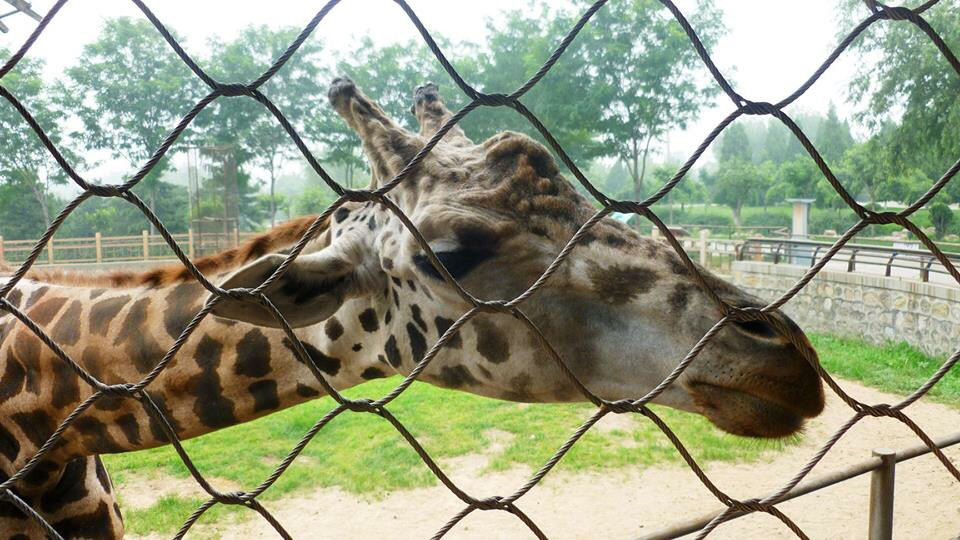

The robust wire rope net, Webnet, enables the realisation of the typically delicate and individualised solutions which meet both the needs of humans as well as those of the animals. The objective is to provide not only the animals, but also the visitors a diverse environment. In other words, a solution is sought that has a long service life, is nearly invisible, yet is also sufficiently robust.
Material of Cable Webnet : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
Stainless Steel Wire Rope Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.
The nets used are woven of flexible wire ropes. Their advantages are numerous: they enable space-saving designs, offer the highest degree of transparency and visual airiness, guarantee safety for humans and animals and are convincing due to their low maintenance costs and longevity.
